OPTIONS FOR JOULIN DE-STACKER

WOOD INDUSTRY - OPTIONS

Methods to remove sticks with Joulin

joulin sticker 1 small

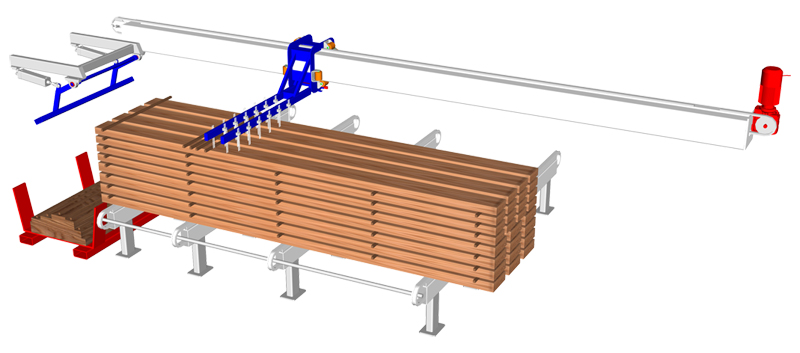

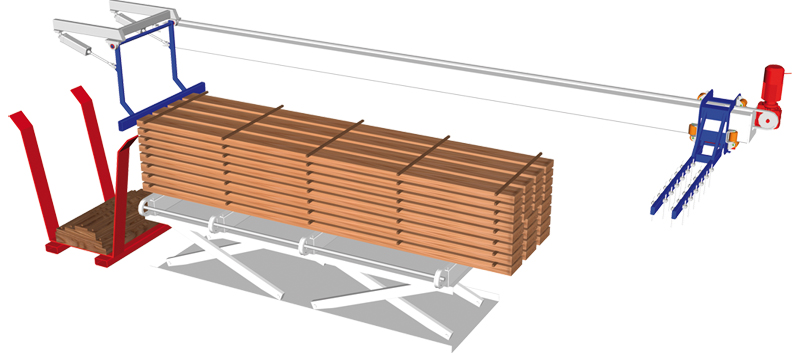

Option A : The lifting table keeps the pack at a set height.  The brush sweep the sticks into a rack.

joulin sticker 1 small



Option B : The brush adjusts vertically with the height of the pack.

joulin sticker 1 small

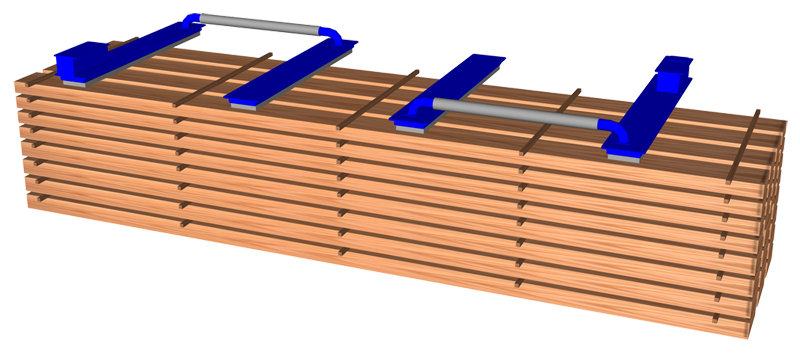

Option C : The layer is picked with the sticks and released on the conveyor. Sticks are removed at that time either by a brush or when feeding the line.

joulin sticker 4 small

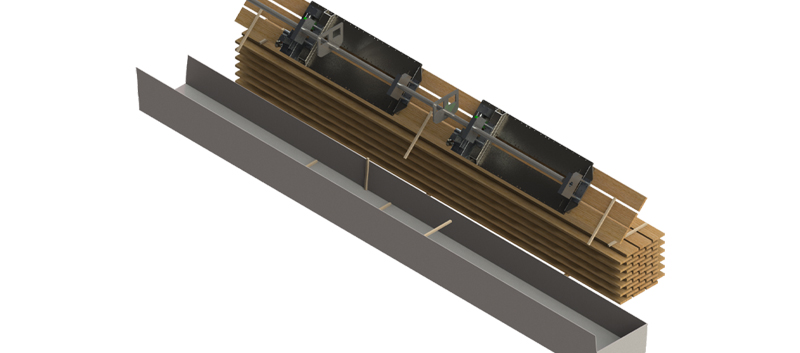

Option D : As a variant of the C option. The grippers are located between the sticks and after gripping tilts the layer 45° to let the sticks fall onto a collection belt.

How to rotate boards or a layer with Joulin

joulin_rotation_1

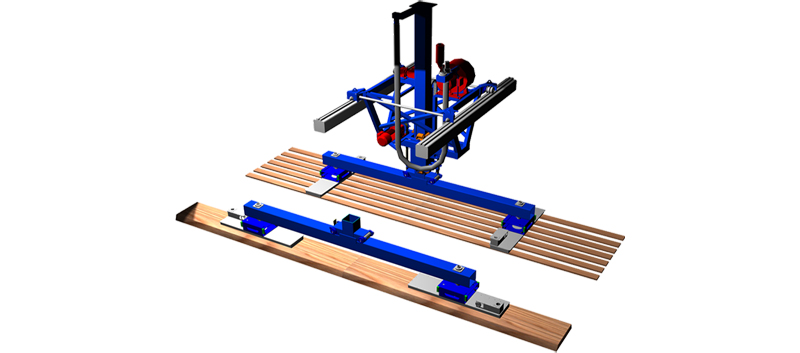

Option A : Switch from picking a single part to rotating 90° and picking a full layer.

joulin_rotation_1

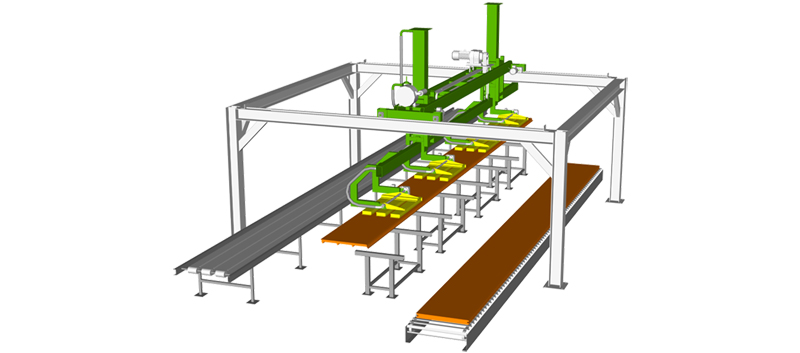

Option B : Flips over the products to inspect or release on the opposite face (90° or 180°).

joulin_rotation_1

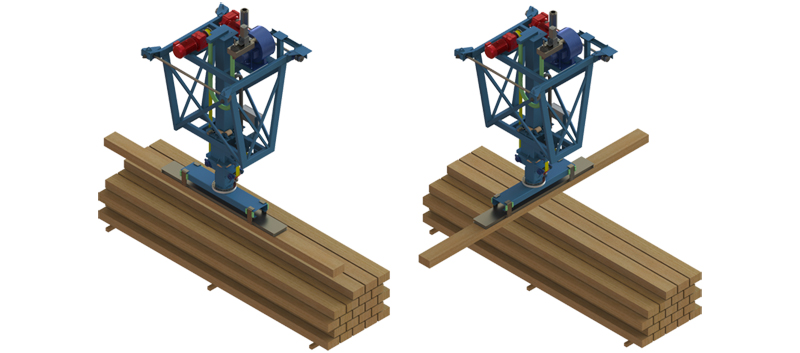

Option C : Horizontal rotation of the products after gripping.

Available Frameworks

joulin position 1

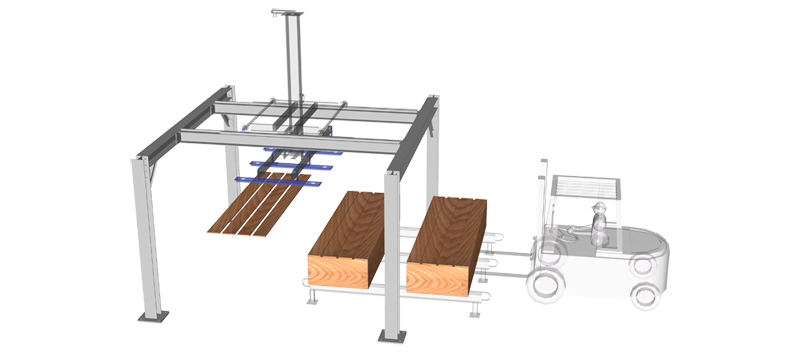

Equipment A : Wide legs for front infeed by width.

joulin position 1

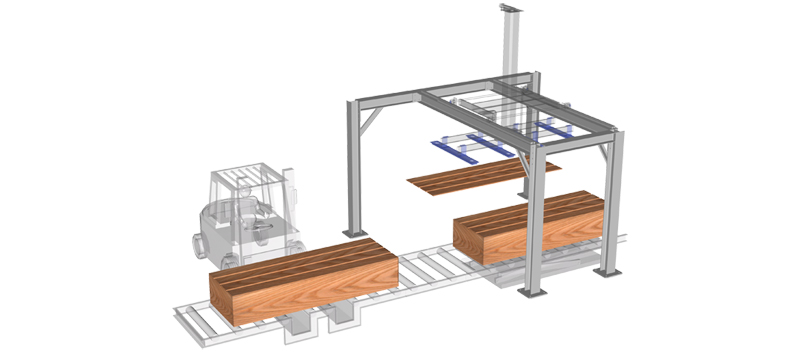

Equipment B : Narrow leg for lateral infeed by length.

joulin position 3

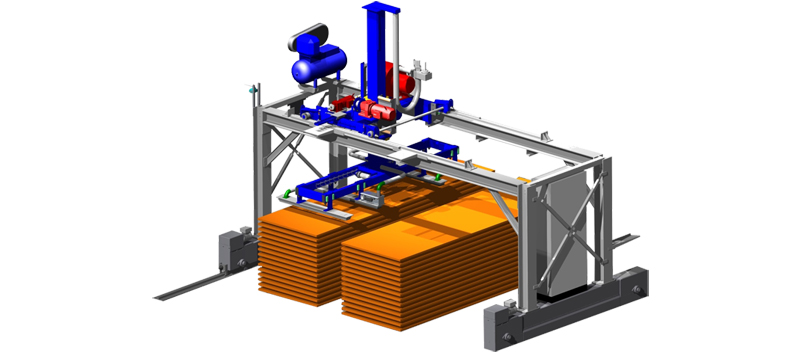

Equipment C : Y horizontal movement with powered base.

joulin position 4

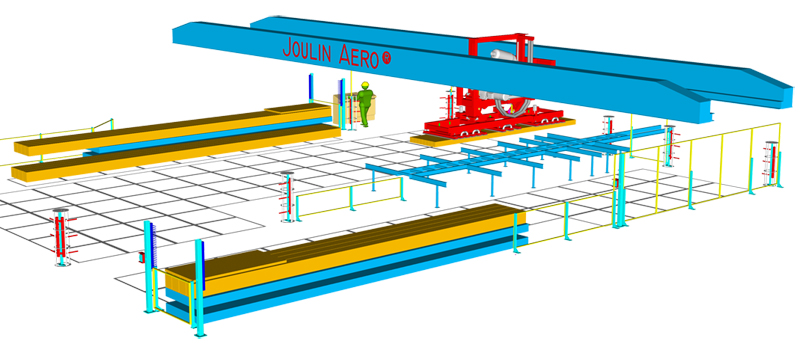

Equipment D : Y horizontal movement with two side wall or ceiling mounted rails.

Many different configurations of frameworks are available. Joulin offers machines with up to 5 axis and the ability to cover a complete workspace floor.

How to control a Joulin

joulin smartscreen 1 small joulin smartscreen 2 small

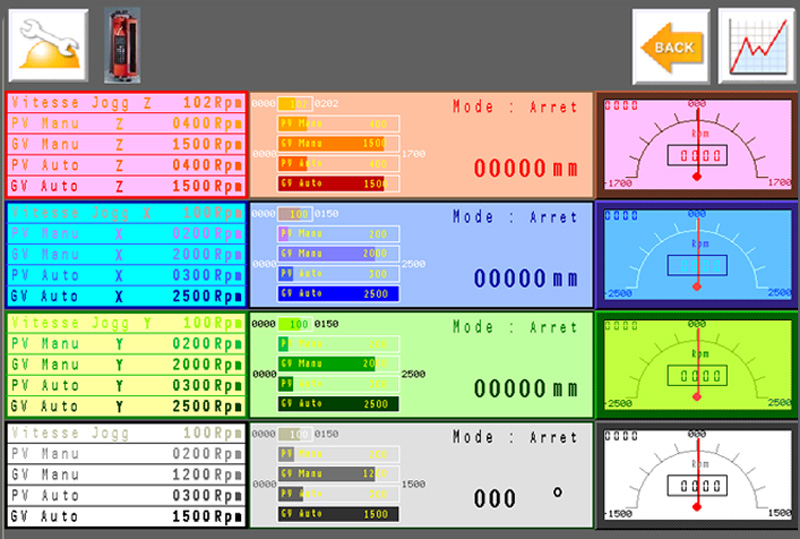

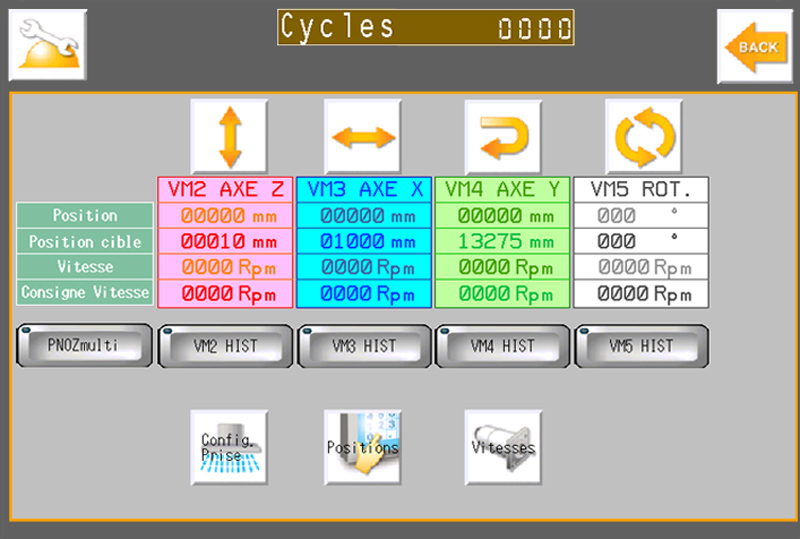

Smart Control :  Smart Control touch screen offers easy and friendly operation. It helps in optimizing and adjusting the speed, acceleration, position and extra parameters of the system.

joulin control 1 small joulin control 2 small

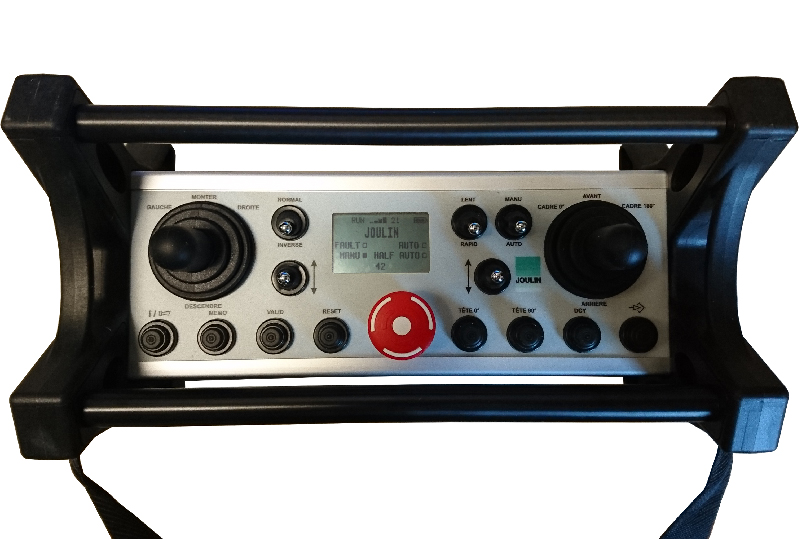

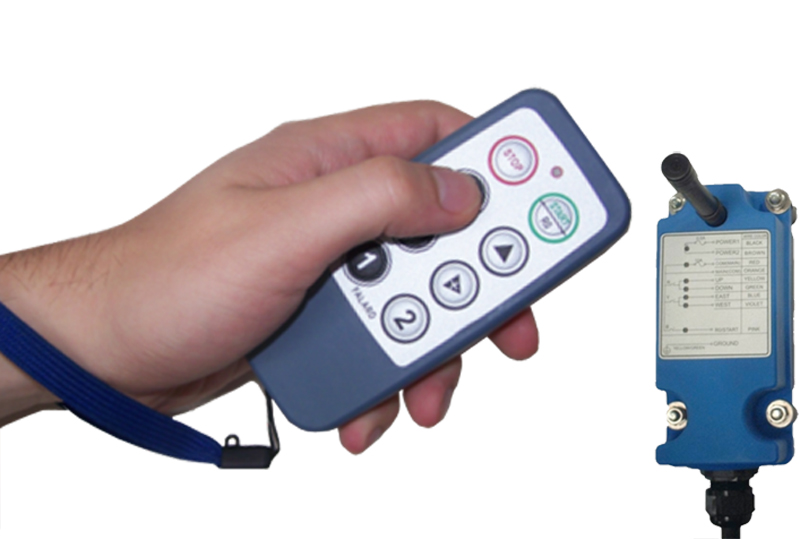

Radio Control : Radio Control allows operator freedom. Différents levels of technology can be proposed.

Maintenance

joulin fixit 2 small joulin fixit small

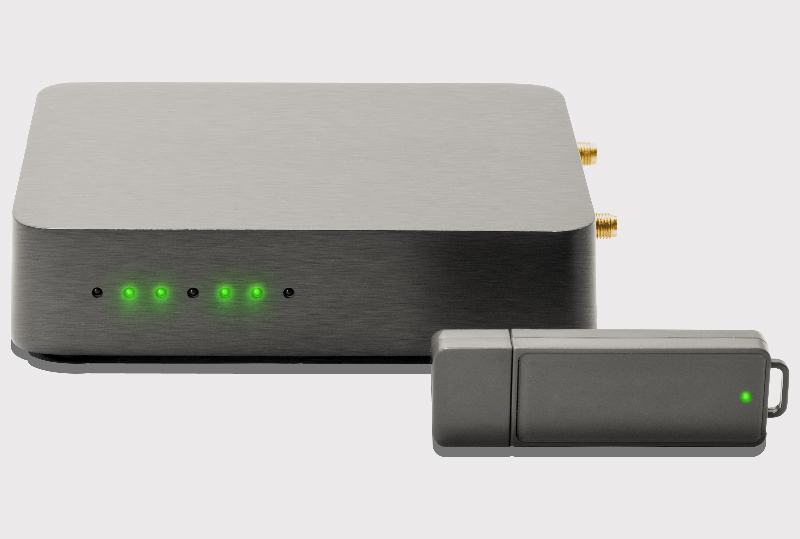

Remote maintenance :  The remote maintenance option allows to take remote control of your gantry robot to assist you in troubleshooting if necessary without the intervention of our on-site technicians when this allows it.
