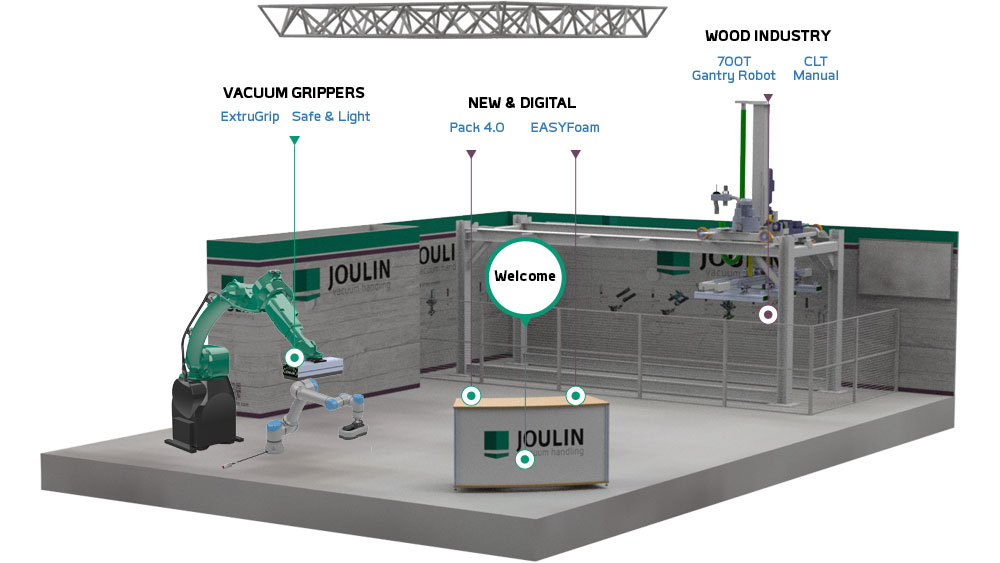

Welcome to Joulin's Virtual Innovation Show!

×

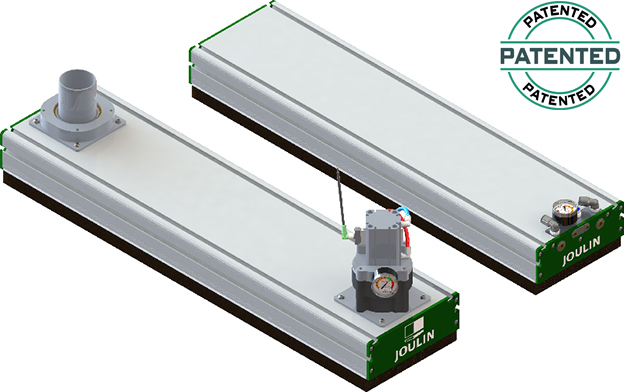

ExtruGrip Grippers

×


Watch the Video (Wood Industry)	Watch the Video (All Industries)	See the Product Sheet

Concept

All Joulin’s technology in an aluminum profile
External vacuum source or internal with venturi ejectors
Different foam patterns to fit your application
Easily adaptable on existing equipment

Benefits

Integrated pick/release module on EGB version
Modular for picking layers of products
Adaptable in length up to 3000mm
Maximum rigidity
Partial layer picking or release of individual products is possible
Simplified adjustment of options in profile grooves

Easy to customize

Available in both check valves or calibrated ports
Easy to install utilizing extrusion grooves

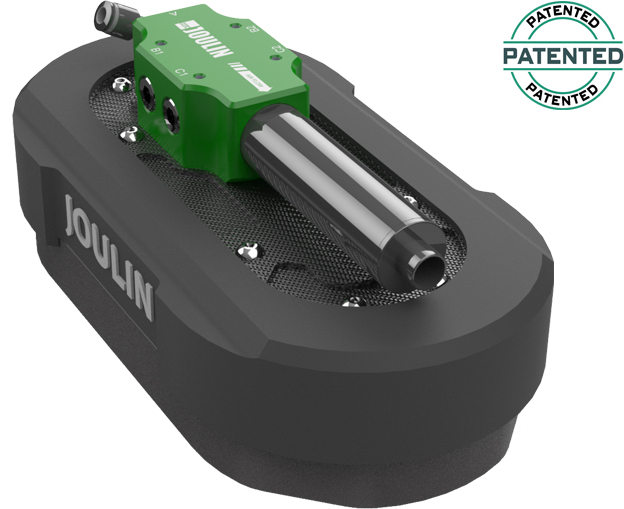

Safe & Light Grippers

×


Watch the Video	See the Product Sheet

Versatile

Gripping power remains constant regardless the product
Switch from products, to slip sheets, to cartons without adjustment
Rugged and not affected by dust

Compact

Gripper design inside a foam for "collaborative" applications
No dead zone on the outsides
Vacuum generator integrated

Easy to install

Quick connect 6mm compressed air
Retrofit with existing cups
Product ready to use

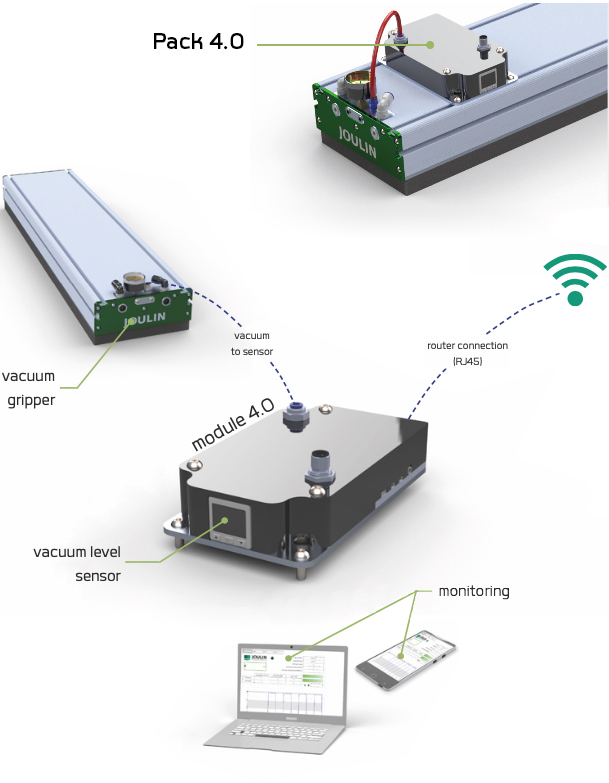

Joulin 4.0

×

See the Product Sheet

Concept

Digital vacuum gauge monitored with a controller
Module linked on Ethernet network
Data accessible on local network with intuitive web pages
Keep track of the vacuum level during picking cycle

Benefits

Monitor the wear percentage of the foam
Detect cycle abnormalities to prevent turbine overheating
Store the lasts foams changes to get statistics on the number of cycles done
Help setting the foam vacuum gripping solution when using new products
Can be configured to send emails to alert on excessive wear or cycle abnormalities

Easy to install

Module can be added on existing systems
Can be used on all type of foam vacuum grippers
Different communication protocols available depending on the machine architecture

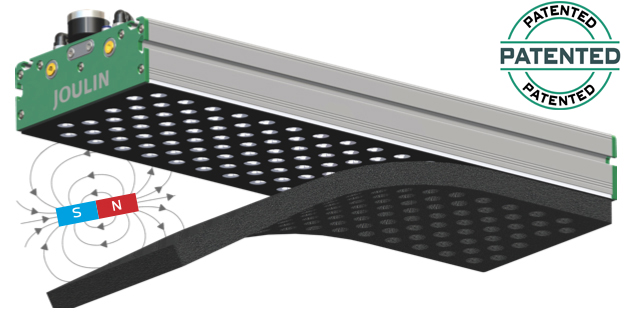

EASYFoam

×


Watch the Video	See the Product Sheet

Concept

Foam with magnetic adhesion
Fast and easy removal of foam from the gripper
Easy to install on existing gripper(s)
Reduces maintenance time and cost
No adhesive to remove at foam change

Benefits

Easy access to the gripper for maintenance and cleaning
Can be removed/replaced an unlimited number of times
Available reusable independent filter for dusty environment

Easy to adapt

Adaptable to all brands of existing grippers
All foam styles / brands
Easily clean and replace the filter by removing the magnetic foam

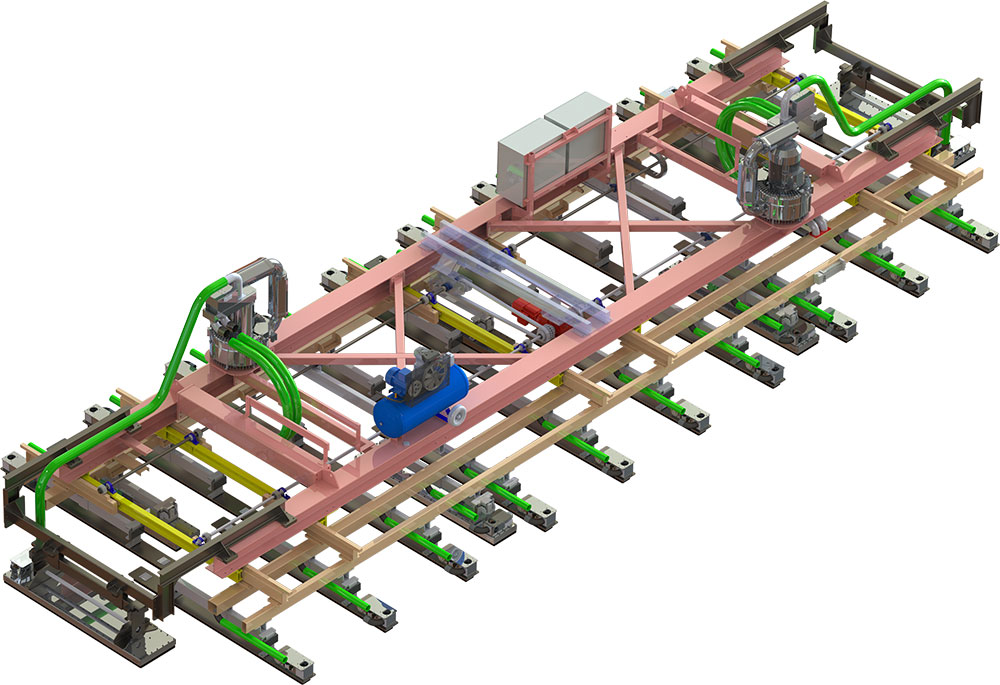

CLT Panels Handling

×


Watch the Video	See the Product Sheet

Concept

Device to be suspended under crane.
Lifting of panels till 10 tons.
(De)Stacking of long layers and cross layers till 16x3,6m.

More Options

Mobile frameworks
Wide range of manipulators: from simple and quick to advanced systems.

Benefits

Designed and manufactured in-house.
Many options available.
Easy to install and use.

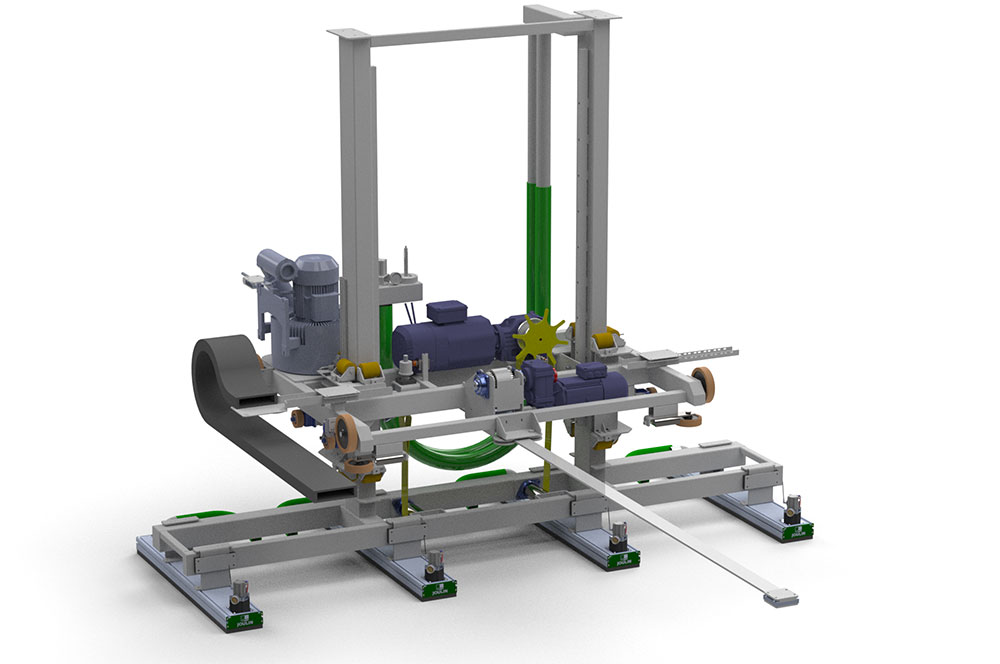

700T Gantry Robot

×


Watch the Video	See the Brochure

Simple , strong design
High speed stacker or destacker
Quick supply of parts and service
Flexible handling for all dimensions
Pick or Release on multiple positions
Manufactured in series to reduce cost and delivery time
Manufactured using high quality, internationally known brand components
Universal Gantry to fit the majority of needs
Destacking or Stacking layers up to 700kg
Largest manufacturer of gantry systems in the wood industry
New grippers 30% more efficent and faster (ExtruGrip)
Handles off-center boards/layers

Infinite Options

2 standard motor configuratons; others on request
Adjustable framework depending on your layout
Mobile Framework
Telescopic columns for low roof or ceiling
Radio control
...
