EXTRUGRIP - FOAM GRIPPER

ALL INDUSTRIES - STANDARD

ExtruGrip
Extrugrip foam vacuum gripper

CONCEPT



  • All Joulin’s technology in an aluminum profile
  • External vacuum source or internal with venturi ejectors
  • Different foam patterns to fit your application
  • Easily adaptable on existing equipment





BENEFITS



  • Integrated pick / release module on EGB version
  • Modular for picking layers of products
  • Adaptable in length up to 3000mm
  • Maximum rigidity
  • Partial layer picking or release of individual products is possible
  • Simplified adjustment of options in profile grooves





EASY TO CUSTOMIZE



  • Available in both check valves or calibrated ports
  • Easy to install utilizing extrusion grooves

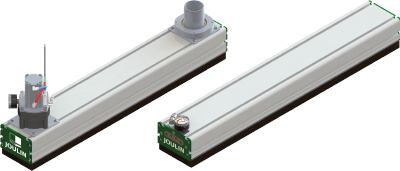

extrugrip 125 drawingextrugrip 3d






Model Foam density Length of the foam

A (mm)

Weight

kg (lbs)

Air Consumption

Nl/sec (scfm)

Maximum Flow

Nl/sec (scfm)
4P15 4P30 4P15 4P30
PG VG PG VG
EGV 4P15
or 4P30		 250

2,7 (5,88)

 3.5 (7.42) 1.75 (3.71) 6.6 (13.99 12 (25.4) 3.3 (6.99) 6 (12.7)
400 3,9 (8,5) 3.5 (7.42) 1.75 (3.71) 6.6 (13.99) 12 (25.4) 3.3 (6.99) 6 (12.7)
600 5,4 (11,8) 5.25 (11.1) 3.5 (7.42) 9.9 (20.99) 18 (38.2) 6.6 (13.99) 12 (25.4)
800 6,9 (15,1) 7 (14.84) 3.5 (7.42) 13.2 (27.98) 24 (50.9) 6.6 (13.99) 12 (25.4)
1200 9,9 (21,8) 8.75 (18.55) 7 (14.84) 23.1 (48.97) 42 (89.0) 13.2 (27.98) 24 (50.9)
1400 11,4 (25,1) 12.25 (25.97) 7 (14.84) 23.1 (48.97) 42 (89.0) 13.2 (27.98) 24 (50.9)

EGB 4P15
or 4P30		 - -

Foam Pad

(EGV - EGB)

 lg. 250

ref:

EGF125.250-15

ref:

EGF125.250-30
400 4,3 (9,4) lg. 400

ref:

EGF125.400-15

ref:

EGF125.400-30
600 5,8 (12,8) lg. 600

ref:

EGF125.600-15

ref:

EGF125.600-30
800 7,3 (16,1) lg. 800

ref:

EGF125.800-15

ref:

EGF125.800-30
1200 10,3 (22,8) lg .1200

ref:

EGF125.1200-15

ref:

EGF125.1200-30
1400 11,8 (26,1) lg. 1400

ref:

EGF125.1400-15

ref:

EGF125.1400-30

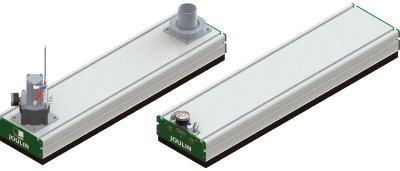

extrugrip 200 drawingextrugrip 200 3d



Model Foam density

Length of the foam

A (mm)

Weight

kg (lbs)

Air Consumption

Nl/sec (scfm)

Maximum Flow

Nl/sec (scfm)
8P17.5 8P35 8P17.5 8P35
PG VG PG VG
EGV 8P17.5
or 8P35		 250

4,4

(9,59)

5,25 (11,13)

 3,5 (7.42)

9.9

(20.99)

18

(38.2)

 6.6

(13.99)

12

(25.4)
400 5,9 (13) 7 (14.84)

 3.5 (7.42)

13.2

(27.98)

24

(50.9)

 6.6

(13.99)

12

(25.4)
600 8,1 (17.9) 8.75 (18.55)

5.25 (11.13)

16.5 (34.98)

30 (63.6)

9.9 (20.99)

18 (38.2)
800 10,4 (22.9)

 12.25 (25.97)

7 (14.84)

23.1

(48.97)

42

(89.0)

 13.2

(27.98)

24

(50.9)
1200 15,9 (35)

17.5 (37.1)

  8.75 (18.55)

33 (69.96)

60 (127.2)

16.5 (34.98)

30 (63.6)
1400 17,7 (39.1)  21 (44.52)

10.5 (22.26)

 39.6

(83.95)

 72

(152.64)

19.8

(41.98)

36

(76.32)

EGB 8P17.5
or 8P35		 - - Foam Pad
(EGV - EGB)		 lg. 250

ref:

EGF200.250-17.5

ref:

EGF200.250-35
400 6,1 (13.5) lg. 400

ref:

EGF200.400-17.5

ref:

EGF200.400-35
600 8,3 (18.4) lg. 600

ref:

EGF200.600-17.5

ref:

EGF200.600-35
800 10,6 (23.4) lg. 800

ref:

EGF200.800-17.5

ref:

EGF200.800-35
1200 14,7 (32.5) lg .1200

ref:

EGF200.1200-17.5

ref:

EGF200.1200-35
1400 16,9 (37.4) lg. 1400

ref:

EGF200.1400-17.5

ref:

EGF200.1400-35

extrugrip 200 drawingextrugrip 200 3d



EHD 125
Pitch		 Designation Holes Number Length A
(mm)		 Mass
(Kg)		 Holding Force (N)*
-380mBar		 Recommended vacuum flow
(m3/h at -380mbar)		 Recommended vacuum flow
(m3/h at atm)
1P30 EHD-VG-125x1200-1P35-PRM 39 1200 13 1929 59 117
EHD-VG-125x1400-1P35-PRM 45 1400 14,7 2226 68 135
EHD-VG-125x1600-1P35-PRM 52 1600 16,5 2572 78 156

1P40 EHD-VG-125x1200-1P40-PRM 29 1200 12,9 1562 44 87
EHD-VG-125x1400-1P40-PRM 34 1400 14,6 1831 51 102
EHD-VG-125x1600-1P40-PRM 39 1600 16,2 2100 59 117
EHD 200
Pitch		 Designation Holes Number Length A
(mm)		 Mass
(Kg)		 Holding Force (N)*
-380mBar		 Recommended vacuum flow
(m3/h at -380mbar)		 Recommended vacuum flow
(m3/h at atm)
1P35 EHD-VG-200x1200-1P35-PRM 33 1200 16,6 2843 50 99
EHD-VG-200x1400-1P35-PRM 39 1400 19 3360 59 117
EHD-VG-200x1600-1P35-PRM 44 1600 21,3 3790 66 132

2P40 EHD-VG-200x1200-2P40-PRM 58 1200 19 2673 87 174
EHD-VG-200x1400-2P40-PRM 68 1400 21,7 3134 102 204
EHD-VG-200x1600-2P40-PRM 78 1600 24,4 3595 117 234

2P30 EHD-VG-200x1200-2P30-PRM 78 1200 19,2 3280 117 234
EHD-VG-200x1400-2P30-PRM 90 1400 22 3785 135 270
EHD-VG-200x1600-2P30-PRMx2 104 1600 27,4 4374 156 312

* Theorical capacities on rigid and airtight products.

Specifications are subject to change

Spare Foams
(EHD 125mm)		 1P30 1200 EHDF.125.1200.24.US.39
1400 EHDF.125.1400.24.US.45
1600 EHDF.125.1600.24.US.52

1P40 1200 EHDF.125.1200.24.US.29
1400 EHDF.125.1400.24.US.34
1600 EHDF.125.1600.24.US.39

Spare Foams
(EHD 200mm)		 1P35 1200 EGF.200.1200.24.US.33
1400 EGF.200.1400.24.US.39
1600 EGF.200.1600.24.US.44

2P40 1200 EGF.200.1200.24.US.58
1400 EGF.200.1400.24.US.68
1600 EGF.200.1600.24.US.78

2P30 1200 EHDF.200.1200.24.US.78
1400 EHDF.200.1400.24.US.90
1600 EHDF.200.1600.24.US.104


Labeling

EGV- VG- 200x800 -8P35 -2ST

Range of the Gripper:
- EGV = Integrated Venturi Vacuum Source
- EGB = External Vacuum

- EHD = Heavy duty

 Technology:
- VG = Valve Gripper
- PG = Port Gripper

Standard Dimensions:

- 125x400

- 125x600

- 125x800

- 125x1200

- 125x1400

- 200x400

- 200x600

- 200x800

- 200x1200

- 200x1400

Custom:

- 125x ...

- 200x ...

Pitch (125mm):
- 15mm
- 30mm

Pitch (200mm):
- 17,5mm
- 35mm

Pitch (EHD 125mm):

- 1P30

- 1P40

Pitch (EHD 200mm):

- 1P35

- 2P40

- 2P30

Integrated Vacuum Source

(EGV only):
- 2ST
- 3ST

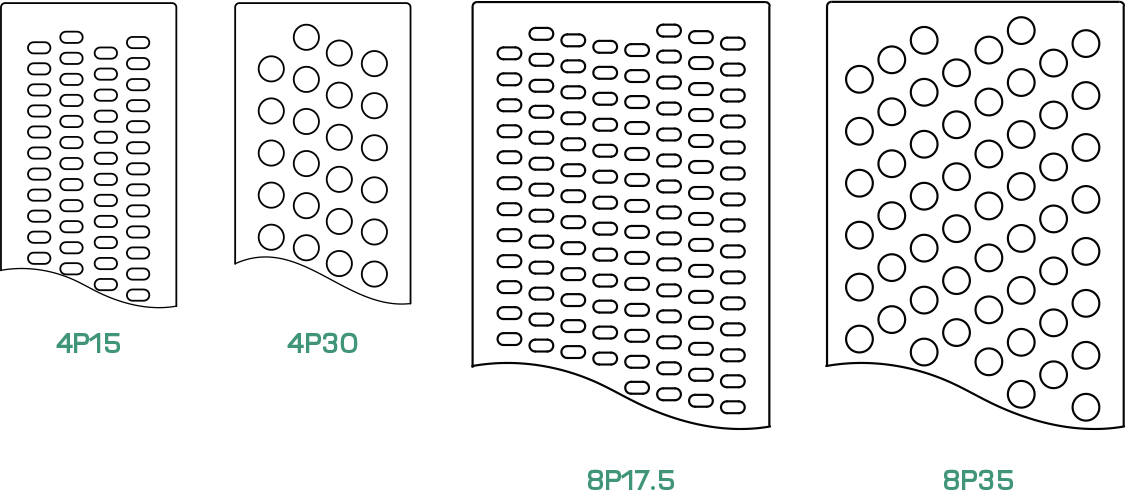

foams design
